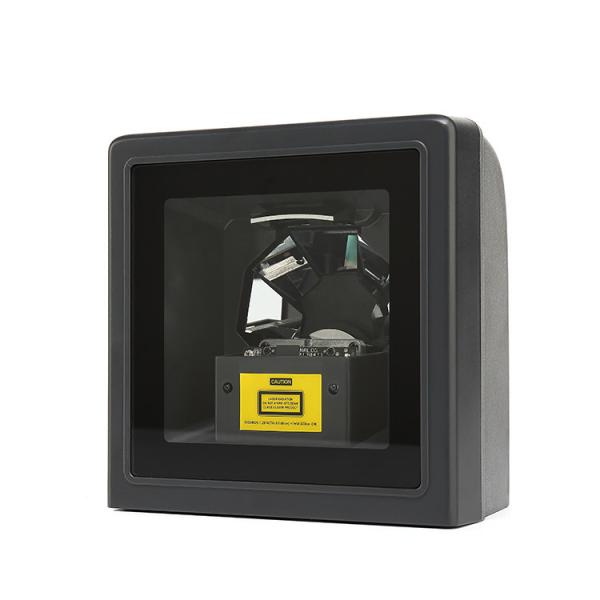

Omni Desktop supermarket USB wired 20 lines automatic 1D Barcode
Scanning Platform
Feature:
* USB free driver, plug and play.
* Automatic wake up function.
* Scanning Speed: 1200 times/sec, fast scanning rate.
* ultrasensitive induction module embed, fast to read codes.
* Multi-language Support.
* Reliable first-pass read all 1D standard barcodes in different
angles.
Application:
1, Supermarket
2, Shopping mall
3, Department store
4, Library
5, Convenience store
Packing list:
1 pc barcode scan platform
1 pc 2 meter cable
1 pc user manual
Detail specification:
| performance parameter | Scan element | Laser |
| Cpu | 32 bit |
| Light source | 650nm visible laser diode (VLD) |
| Scan distance | 0-206mm(UPC/EAN 100%,PCS=90%) |
| Scan line | 20 lines |
| Scan pattern | 5 directions of scan field |
| Scan speed | 1200scans/sec |
| Resolution | 5mil / PCS90% |
| Contrast ratio | 30%UPC/EAN 100% |
| Indicator light | Bi-Color LED(bule and red) |
| Buzzer | Frequency and Volume is available to adjust |
| Connector | RS232 serial port,HDI USB, Keyboard |
| Physical | Dimension | 180x 140x 102 mm( L x D x W ) |
| Weight | 385g |
| Length of Cable | 2M |
| Power | Input Voltage | DC 5V±10% |
| Operating current | 180mA / 5.0V |
| Laser Security | CDRHII grade; IEC 60825-1:Grade2 |
| electromagnetic compatibility | E En 55022 B,FCC Part 15 Class B ,VCCI,BSMI |
| Operating environment | Temperature | 0°- 40°C/32°F - 104°F (operation) ,20°- 60°C/-4°F -140°F(storage) |
| Humidity | 5 - 90% (No condensation) |
| Optical property | Max 2500LUX (Fluorescence) |
| Drop test | 1m/3.28ft drop onto concrete surface |
| Enclosed items | Cables(USB,RS232,PS2), User Guide, DC power supply (RS232) |
| Application | Widely integrated in ATM machines, information kiosks, check price
machine, lottery machine |
| Supported Symbologies | UPC/EAN/JAN, UPC-A&UPC-E, EAN-8&EAN-13, JAN-8&JAN-13,
ISBN/ISSN, Code 39(with full ASCII), Codabar(NW7), Code 128&EAN
128, Code 93, Interleaved 2 of 5(ITF), Addendum 2 of 5, IATA Code, |
| China Postal Code, Code 32(Italian Pharmacode), MSI/Plessy,RSS 14,
RSS Limited, RSS Expanded |

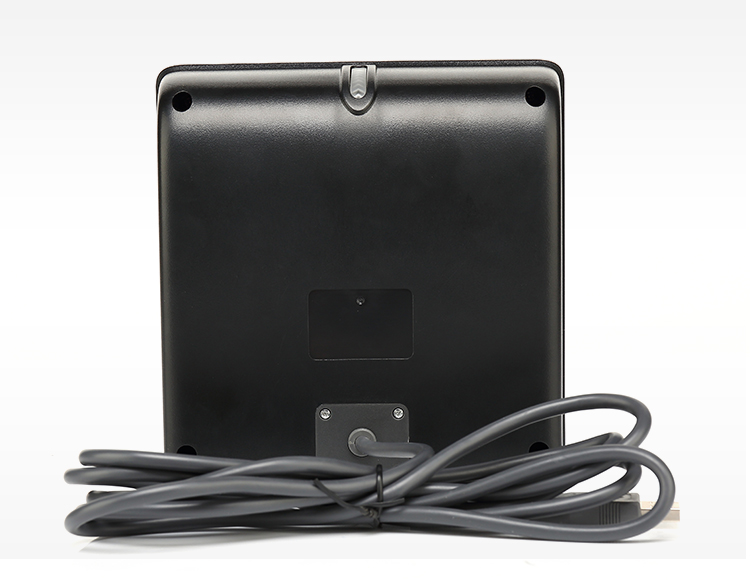

More pictures:
Our advantage:
1, Low MOQ as 1pc.
2, Provide with branded qualified product and 1 year warranty.
3, Provide full set of pos system related product,meet your
one-store shopping requirement.
4, Professional technicians to provide technical support.
